EFR Portugal

Quick Start

Compared to other country implementations, for Portugal the EFR is intended to perform the whole receipt creation including printout to conform with software certification rules (CERTIFICAÇÃO DE SOFTWARE MODELO 24) of the Tax Authority.

System Requirements

System Requirements

System Requirements

• Operating System
  • Windows 7 or higher
  • Linux
  • Android 8 or higher
• Typically 1 GB hard disk space reserved
  • Minimum 100 MB per POS
• Administration rights during installation
• Internet access for cloud services

Good to know

• EFR should run locally for fail-safety reasons.
• Cloud EFR can only be used for Cloud POS.

Firewall Settings

Partner	Host	Used for
efsta cloud	https://*.efsta.net:443 https://fr.efsta.net:443 https://de-fr.efsta.net:443	EFR in Online mode for archiving data

Remote Signature

	Partner	Used for	Host
[AT]	A-Trust	External HSM signature	https://hs-abnahme.a-trust.at:443 https://rksv.a-trust.at/
	Prime-Sign	External HSM signature	https://rs-1f9e614c.ps.prime-sign.com:443 https://rs-2759ffb9.ps.prime-sign.com (please see note below)
[BE]	zwartedoos.be	Remote Test FDM	https://sdk.zwartedoos.be:443
[DE]	Deutsche Fiskal	Remote TSE	https://fiskal.cloud:443
	Fiskaly	Remote TSE	https://kassensichv.io:443 https://*.fiskaly.com:443
[SE]	Infrasec	Productive Test	https://ccu.infrasec.se:8449 https://ccu-verify.infrasec.se:8449

info

Please note that Prime-Sign has not just one HSM Server, but a cluster. If certificates are ordered using the efsta Cloud Portal, you'll see the host address in the portal. However, should the certificate be ordered through different channels, it is possible that it resides on a different server, using a different IP.

Fiscal Authority

	Partner	Used for	Host
[CZ]	EET	Productive Test	https://prod.eet.cz:443 https://pg.eet.cz:443
[ES]	VERI*FACTU	Productive Test	https://www1.agenciatributaria.gob.es https://prewww1.aeat.es
Araba		Productive Test	https://ticketbai.araba.eus https://pruebas-ticketbai.araba.eus
Bizkaia		Productive Test	https://sarrerak.bizkaia.eus https://pruesarrerak.bizkaia.eus
Gipuzkoa		Productive Test	https://tbai-z.egoitza.gipuzkoa.eus https://tbai-z.prep.gipuzkoa.eus
[HR]	FINA	Productive Test	https://cis.porezna-uprava.hr:8449 https://cistest.apis-it.hr:8449
[PT]		Productive	https://servicos.portaldasfinancas.gov.pt:422/SeriesWSService
[SI]	FURS	Productive Test	https://blagajne.fu.gov.si:9003 https://blagajne-test.fu.gov.si:9002

Fiscal Devices

	Partner	Used for	Host
[BE]	zwartedoos.be	Productive NTP	*:443 *:123

Fiscal Printer

	Partner	Used for	Host
[HU]	BBOX	Productive	193.91.88.26:4791
[SK]	BBOX	Productive	193.91.88.26:4791
[IT]	Epson	Productive	-
	Custom	Productive	-
[PL]		Productive Productive Test Test	https://esb.mf.gov.pl:5062 https://e-kasy.mf.gov.pl https://esb-te.mf.gov.pl:5062 https://test-e-kasy.mf.gov.pl
	Exorigo	Productive Productive Test Firmware Update NTP NTP	crr-eh01-prd.servicebus.windows.net:443 crr-eh02-prd.servicebus.windows.net:443 crr-eh-we-tst.servicebus.windows.net:443 upfirm.exorigo-upos.pl:4433 tempus1.gum.gov.pl:123 tempus2.gum.gov.pl:123

EFR Installation

See: EFR > Installation

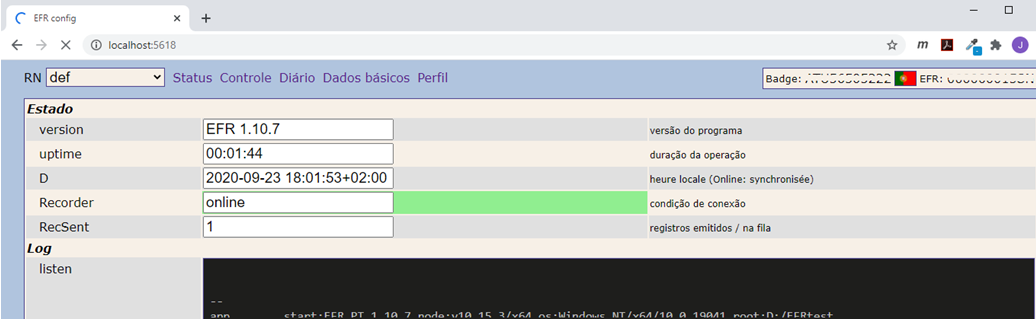

Basic execution tracking can be examined via web access http://localhost:5618/

Additional Linux packages

Required packages if using a USB printer: libudev-dev

Printer Installation

For direct EFR printout of fiscal and non fiscal transaction receipts a printer is required.

• Epson TM-T88 or compatible
• via USB, LAN or RS232

The printer must be capable of graphic printing, as a QR code on receipts is required by law from January 2021 on. For older printers without native QR support the EFR QR graphics generation can be used.

To setup the printer connection in EFR, navigate to "Perfil" and enter Printer=Epson_TM

See the additional steps below, depending on the communication interface. After having saved the profile data, restart your computer.

USB

Windows:

1. Connect your compatible printer to the system
2. Download zaxdig driver
3. Run zadig.exe
4. Select "TM-T800F TM-T900F" from the list (you may have to enable the "List All Devices" option first)
5. "Install Driver" or "Replace Driver"

Linux:

1. Install package libudev-dev apt-get install -y libudev-dev
2. In case of LIBUSB access errors, the accessibility of USB interfaces has to be configured, e.g. insert in /lib/udev/rules.d/50-udevdefault.rules: SUBSYSTEM=="usb", ATTRS{idVendor}=="04b8", ATTRS{idProduct}=="0201", MODE="0666"

LAN

Use following attributes to configure a LAN-connection: Printer=Epson_TM Printer_Port=ETH:10.0.0.123

Serial

Use following attributes to configure a serial connection: Printer=Epson_TM Printer_Port=COM1:57600

Network Access

The machine running EFR must be granted access to the fiscal system for cloud services and fiscal portal. Network devices (Router, Firewall) have to be configured accordingly.

Environment	Host	Port
efsta Cloud	fr.efsta.net	443
Fiscal portal	servicos.portaldasfinancas.gov.pt	422
Fiscal portal (test)	servicos.portaldasfinancas.gov.pt	722

A proxy can be defined in the default profile http://localhost:5618/profile

Configuration

Before sending the first transaction, the company header sales data should be configured. This can be done manually or via request.

One of the key requirements for a fiscal journal is the unique identification of documents (transactions). As the incremental numbering of documents is created per cash register, each register has a specific ID consisting of TL (Transaction Location) and TT (Transaction Terminal).

Single Client (RN_SINGLE)

On systems running a local EFR using one single client (RN), save the settings for TL & TT and do not specify it in your request:

Multi Client (RN_MULTI)

In EFR server mode managing multiple clients, set RN_TT in "Perfil":

In this case, specify TL and TT (see EFR Reference) in your request so a separate storage area is created per client (directory /EFR/rn/{TL}_{TT}/), managing its own number range.

API-Key

For certification and field usage of EFR you have to obtain a partner specific API-Key from your efsta sales representative, which has to be entered in "Perfil".

Cloud Configuration

For centralized administration, base data can be set per cash register terminal (EFR) using the efsta cloud portal and the data is duplicated to the EFR instances.

Programmatic Configuration

Alternatively you can supply the header fields with POST http://localhost:5618/cfg:

<Cfg>
  <Cmp TaxId="PT999999999" Nam="My Company" ValidationCode="ATCD"/>
  <Loc TL="1" label="1" Adr="123 Long Road" Zip="12345" City="Lisboa" Ctry="PT"/>
  <Trm TT="1"/>
</Cfg>

{
	"Cfg": {
		"Cmp": {
			"TaxId": "PT999999999",
			"Nam": "My Company",
			"ValidationCode": "ATCD"
		},
		"Loc": {
			"TL": "1",
			"label": "1",
			"Adr": "123 Long Road",
			"Zip": "12345",
			"City": "Lisboa",
			"Ctry": "PT"
		},
		"Trm": {
			"TT": "1"
		}
	}
}

Further details for /cfg can be found in EFR Reference.

Manual Configuration

Navigate to http://localhost:5618 in your browser and open "Dados básicos" (base data). Enter the field values required and the data will be duplicated to efsta cloud.

Field reference

Element	Attribute	Description
Cmp		Company header
	Nam	Company name
	TaxId	Intra-Community VAT identifier
	ValidationCode	Validation Code
Loc		Location (store) header
	TL	Transaction Location correlating ESR.TL
	Adr	Address
	Zip	PostCode
	City	City
	Ctry	Country
Trm		Terminal
	TT	Transaction Terminal correlating ESR.TT

If fields Loc.TL and Trm.TT are persisted using /cfg, they may be omitted in the /register ESR element. For simplicity, ESR.TL and ESR.TT are not shown in further example transactions of this document.

First Test Transaction

The cash register software communicates with the EFR via REST web service. You can simulate this behavior before beginning to implement the actual interface. To do this, please install a REST client of your choice.

Parameters for the web request are:

Element	Parameter
URL	http://localhost:5618/register
Method	POST
Payload	Transaction data as XML or JSON

Example XML transaction

<Tra>
  <ESR T="3.98" TN="1234" Opr="555">
    <PosA>
      <Pos PN="1" Dsc="Pão de centeio integral 500g" TaxG="C" Amt="1.49" />
      <Pos PN="2" Dsc="COLGATE Escova dente dura" TaxG="A" Amt="2.99" />
      <Mod PN="2" Dsc="Promoção" Amt="-0.50" />
    </PosA>
    <PayA>
      <Pay Dsc="Numerário" Amt="5.00" />
      <Pay Dsc="Mudança" Amt="-1.02" />
    </PayA>
  </ESR>
</Tra>

{ "Tra": {
  "ESR": { "T":3.98, "TN":1234, "Opr":"555",
    "PosA": [
      { "_":"Pos", "PN":1, "Dsc":"Pão de centeio integral 500g", "TaxG":"C", "Amt":1.49 },
      { "_":"Pos", "PN":2, "Dsc":"COLGATE Escova dente dura", "TaxG":"A", "Amt":2.99 },
      { "_":"Mod", "PN":2, "Dsc":"Promoção", "Amt":-0.50 }
    ],
    "PayA": [
      { "Dsc":"Dinheiro", "Amt":5.00 },
      { "Dsc":"Mudança", "Amt":-1.02 }
    ]
  }
}}

Response

The returned answer provides you with the http state and ResultCode RC.

<TraC SQ="4">
  <Result RC="OK"/>
  <ESR TL="001" TT="2" D="2022-09-24T14:53:45" FN="FS 001_2.22/1">
    <TaxA>
      <Tax TaxG="A" Prc="23" Net="2.02" TAmt="0.47" Amt="2.49"/>
      <Tax TaxG="C" Prc="6" Net="1.41" TAmt="0.08" Amt="1.49"/>
    </TaxA>
  </ESR>
  <Fis>
    <Payload>2022-09-24;2022-09-24 14:53:45;FR 001_2/1;3.98;</Payload>
    <Signature>EWZM3...xhK0=</Signature>
    <Code>...</Code>
    <Tag Label="Número:" Value="FS 001_2.22/1" Name="FN"/>
    <Tag Label="Data:" Value="2022-09-24 14:53:45" Name="Date"/>
    <Tag Label="" Value="EH+U-Processado por programa certificado 9999/AT" Name="Sec"/>
    <Tag Label="ATCUD:" Value="AAJFFY3FCG-1" Name="ATCUD"/>
  </Fis>
</TraC>

The response contains automatically assigned fields, the <TaxA> array supplemented by EFR, and the fiscal security data including signature. In this example, EFR built-in tax groups TaxG are referred (see Appendix). When using your system's tax codes, please provide the <TaxA> array. The <Code> field contains the data to be printed as QR (version 9, M) on the ticket.

Workflow Rules

For details and data structures see EFR Reference.

HTTP	RC	Meaning
200	OK	Proceed with the final steps (store transaction)
406	NO	Show error message based on field ErrorCode the transaction may be repeated after operator intervention
400	BAD	BAD signals a formal or logical error correct transaction data before resending

The <Tag> lines have to be printed on the receipt using the label given.

Fiscal Implementation

Implementation Portuguese Fiscal Rules

Automatic ESR Fields

For detailed description of fields see EFR Reference. As described above RN_SINGLE, ESR.TL and ESR.TT should be omitted in favor of setting base parameters.

Also omit field ESR.D, as the transaction date is treated very restrictively by law. This will allow EFR to set its own reliable time, which is synchronized with cloud time in online mode.

Operator ID Opr

To each transaction, the cash register operator ID shall be assigned. Provide this in the field ESR.Opr (and optionally ESR.OprN), default is the username logged in (operating system).

Alternatively you can use separate non-fiscal Logon / Logoff transactions:

<Tra>
  <ESR TN="1233" NF="LOGON" Opr="555" OprN="Ana"/>
</Tra>

<Tra>
  <ESR TN="1250" NF="LOGOFF"/>
</Tra>

VAT Handling

For signature purposes, single receipt/control positions are to be assigned to the following tax groups:

Tax group	Prc	Description
A	23	Normal
AM	22	Normal (Madeira)
AA	18	Normal (Azores)
B	13	Intermédia
BM	12	Intermédia (Madeira)
BA	9	Intermédia (Azores)
C	6	Reduzida
CM	5	Reduzida (Madeira)
CA	4	Reduzida (Azores)
M01	0	Artigo 16.º n.º 6 do CIVA (ou similar)
M02	0	Artigo 6.º do Decreto-Lei n.º 198/90, de 19 de Junho
M03	0	Exigibilidade de Caixa
M04	0	Isento Artigo 13.º do CIVA (ou similar)
M05	0	Isento Artigo 14.º do CIVA (ou similar)
M06	0	Isento Artigo 15.º do CIVA (ou similar)
M07	0	Isento Artigo 9.º do CIVA (ou similar)
M08	0	IVA – autoliquidação
M09	0	IVA - não confere direito a dedução
M10	0	IVA – Regime de isenção
M11	0	Regime particular do tabaco
M12	0	Regime da margem de lucro – Agências de viagens
M13	0	Regime da margem de lucro – Bens em segunda mão
M14	0	Regime da margem de lucro – Objetos de arte
M15	0	Regime da margem de lucro – Objetos de coleção e antiguidades
M16	0	Isento Artigo 14.º do RITI (ou similar)
M20	0	IVA - Regime forfetário
M99	0	Não sujeito; não tributado (ou similar)

This is achieved either by directly expressing TaxG="A" (A-F) or by matching of value if the percent value is denoted. For tax exemptions set the appropriate code in field Pos.TaxG.

Reduced Tax Rates for Madeira & Azores

For Portuguese islands, reduced tax rates are valid. Extend TaxG with "M" for Madeira and "A" for Azores.

For stores in these regions you have to set field TaxGR in "Dados básicos", "Location":

Payment Groups

SAF-T expects payment mechanism specification for payment line. By default, this is derived from <Pay Dsc=... field using a string match list, but it can also be specified in field PayG. If you want to do so, please refer to "SAF-T Payment Group Codes".

PayG	Description	Descrição
CC	Credit card	Cartão crédito
CD	Debit card	Cartão débito
CH	Bank cheque	Cheque bancário
CI	International Letter of Credit	Crédito documentário internacional
CO	Gift cheque or gift card	Cheque ou cartão oferta
CS	Balance compensation in current account	Compensação de saldos em conta corrente
DE	Electronic Money, for example, on fidelity or points cards	Dinheiro eletrónico, por exemplo residente em cartões de fidelidade ou de pontos
LC	Commercial Bill	Letra comercial
MB	Payment references for ATM	Referências de pagamento para Multibanco
NU	Cash	Numerário
OU	Other means not mentioned	Outros meios aqui não assinalados
PR	Exchange of goods	Permuta de bens
TB	Banking transfer or authorized direct debit	Transferência bancária ou débito direto autorizado
TR	Non-wage compensation titles regardless of their support (paper or digital format), e.g. meal or education vouchers, etc.	Títulos de compensação extrassalarial independentemente do seu suporte, por exemplo, títulos de refeição, educação, etc.

SAF-T Document Type Codes

DT	Description	descrição
FT	Invoice	Fatura, emitida nos termos do artigo 36.º do Código do IVA
FS	Simplified Invoice issued according to article 40 of the VAT code	Fatura simplificada, emitida nos termos do artigo 40.º do Código do IVA
FR	Invoice-receipt (default)	Fatura-recibo
ND	Debit note	Nota de débito
NC	Credit note (default for negative transaction)	Nota de crédito
	Insurance sector	Para o setor Segurador
RP	Premium or premium receipt	Prémio ou recibo de prémio
RE	Return insurance or receipt of return insurance	Estorno ou recibo de estorno
CS	Imputation to co-insurance companies	Imputação a co-seguradoras
LD	Imputation to a leader co-insurance company	Imputação a co-seguradora líder
RA	Accepted reinsurance	Resseguro aceite

Unique Transaction ID / FN / ATCUD

Usually, each transaction in cash register systems gets an incremental transaction number, but the fiscal rules determine numbering per document type (e.g. invoice, credit note, ...). You can register your transaction number in the ESR field TN as reference, but a separate Fiscal Number FN will be assigned and stored in the journal. The current number part is reset to 1 with each year's first transaction.

Fiscal Signature

A digital signature is created for each transaction and cryptographically chained according to law, parts of the signature are printed in receipt trailer line "Processado por programa certificado...". Since the signature is included in SAF-T [PT] export data, the fiscal authority will verify signature values and chain.

Receipt Layout

The receipt print layout is controlled in /EFR/rn/def/cfg/fiscal.ejs (or .pug).
EJS/Pug (ejs.co/pugjs.org) are templating languages to transform JSON data into HTML. Afterwards, the formatted HTML is rendered for a character font receipt printer. A basic layout is provided by default, whereas details of print configuration can be found in EFR Reference.

Transactions

Normal Sale / Fatura Simplificado

<Tra>
  <ESR T="3.98" TN="1234" Opr="555">
    <PosA>
      <Pos PN="1" Dsc="Pão de centeio integral 500g" TaxG="C" Amt="1.49" />
      <Pos PN="2" Dsc="COLGATE Escova dente dura" TaxG="A" Amt="2.99" />
      <Mod PN="2" Dsc="Promoção" Amt="-0.50" />
    </PosA>
    <PayA>
      <Pay Dsc="Numerário" Amt="5.00" />
      <Pay Dsc="Mudança" Amt="-1.02" />
    </PayA>
  </ESR>
</Tra>

Credit Note / Nota de credito

As with other countries using fiscal printers, mixing positive (sales) and negative (return/void) positions within one transaction is not allowed and will lead to a <TraC><Result RC="BAD"> response. Please inform your cashiers to do this in two separate steps instead.

To accept data from applications which do not remove lines, but immediately void unwanted scans, negative (return/void) positions are allowed as long as they correspond to positive positions within the same transaction.

Transactions with negative total (e.g. ESR.T="-3.98") are automatically registered as credit notes "Nota de Crédito", which are printed showing inverted amounts and quantities. You have to reference the original transaction in fields ESR.RFN (or ESR.RTL, ESR.RTT, ESR.RTN) and Pos.RPN. Also specify a reason for SAF-T export:

<Tra>
  <ESR T="-3.98" ... RFN="FS 001_1.22/1234" Rsn="Jacket did not fit">
...

Voiding Documents / Anulação

Mark the transaction with <ESR ... Void="1", specify RFN and send the positions inverted. You will not get a <Fis> tag in the response, as the void trigger itself is not signed. The original ticket is flagged as voided (InvoiceStatus=A) in SAF-T. For voiding the last transaction, /register/void/last may be used (see EFR Reference).

Invoice / Fatura

For sales exceeding EUR 1000,- an invoice FT "Fatura" is issued instead of FS "Fatura simplificado". For this, customer data including the customer's TaxId NIF is required:

<Tra>
  <ESR T="1008.98" …>
        <Ctm TaxId="PT199998132" Nam="Nuno Cazeiro" Adr="Rua do Porto, 33" City="Carcavelos" Zip="2775-543" Ctry="PT"/>
...

If a ticket (with lower ESR.T) is registered including <Ctm TaxId=, FT will be used as well. <Ctm> information without TaxId is shown as unknown customer (CustomerTaxID=Desconhecido) in SAF-T, with the document type FS.

Automatic Tax Computation

If element TaxA is omitted, it is computed from Pos and Mod elements.

<Tra>
  <ESR T="3.98" TN="1234" Opr="555">
    <PosA>
      <Pos PN="1" Dsc="Pão de centeio integral 500g" TaxG="C" Amt="1.49" />
      <Pos PN="2" Dsc="COLGATE Escova dente dura" TaxG="A" Amt="2.99" />
      <Mod PN="2" Dsc="Promoção" Amt="-0.50" />
    </PosA>
    <PayA>
      <Pay Dsc="Numerário" Amt="5.00" />
      <Pay Dsc="Mudança" Amt="-1.02" />
    </PayA>
  </ESR>
</Tra>

Block TaxA is returned:

<TraC SQ="4">
  <Result RC="OK"/>
  <ESR TL="001" TT="2" D="2022-09-24T14:53:45" FN="FS 001_2.22/1">
    <TaxA>
      <Tax TaxG="A" Prc="23" Net="2.02" TAmt="0.47" Amt="2.49"/>
      <Tax TaxG="C" Prc="6" Net="1.41" TAmt="0.08" Amt="1.49"/>
    </TaxA>
...

Error at registration

<Tra>
  <XXXXXXXXXXXXXXX/>
</Tra>

Response:

<TraC>
 <Result RC="BAD">
  <ErrorCode>#ERROR</ErrorCode>
  <Warning>e-#INVALID Tra without ESR</Warning>
 </Result>
</TraC>

• HTTP Status 400
  Bad Request
• RC="BAD"
  The transaction couldn’t be registered, the receipt must be discarded.
• <Warning>e-#INVALID:...
  Warning-Elements contain more details on the type of error.

Non-fiscal Receipts

Administrative transactions like PAYIN, PAYOUT or Z report (closure) can be registered using field ESR.NF, e.g. <ESR NF="Z". By using NF, no signature will be created. These document types are not included in SAF-T export.

Other Document Types

Sales are stored as FS "Fatura simplificado", FT "Fatura" (amount > EUR 1000,-), and credit notes as NC "Nota de crédito" per default. Other document types shall be specified in field ESR.DT. Please assure compliance with SAF-T Document Type Codes.

B2B Sales

For business-to-business sales, at least the NIF TaxId (with or without leading "PT") of the buyer shall be registered.

<Tra>
  <ESR T="3.98" TN="1234" Opr="555">
    <Ctm TaxId="PT980701066">
    <PosA>
...

TaxId PT999999990 ("undefined"/"desconhecido") is ignored and will not trigger a "Fatura". For further customer data fields see EFR Reference.

Full Transaction XML

<Tra>
  <ESR T="3.98" TN="1234" Opr="555">
    <Head>
      <Txt>Operator: Gabriele</Txt>
    </Head>
    <PosA>
      <Pos PN="1" Dsc="Pão de centeio integral 500g" TaxG="C" Amt="1.49" />
      <Pos PN="2" Dsc="COLGATE Escova dente dura" TaxG="A" Amt="2.99" />
      <Mod PN="2" Dsc="Promoção" Amt="-0.50" />
    </PosA>
    <PayA>
      <Pay Dsc="Numerário" PayG="NU" Amt="5.00" />
      <Pay Dsc="Mudança" Amt="-1.02" />
    </PayA>
    <TaxA>
      <Tax TaxG="A" Prc="23" Net="2.02" TAmt="0.47" Amt="2.49"/>
      <Tax TaxG="C" Prc="6" Net="1.41" TAmt="0.08" Amt="1.49"/>
    </TaxA>
    <Foot>
      <Txt>Thank you!</Txt>
    </Foot>
  </ESR>
</Tra>

POS Administration

Document Reprints

To access the fiscal journal use "Diário", where you can search for specific field values. Single transaction reprints can be requested, which will be marked as Cópia do documento original ....

Backup Strategy

The backup strategy of the POS (databases) and recovery procedure will have to be presented during fiscal certification. On larger POS infrastructure, the base and configuration data is usually provided by replication, so a local base data backup will not be required. Transacting data backups from EFR is done immediately after each registration into the efsta cloud archive, so data loss cannot occur as long as either the EFR has an online connection or the local hard disk works without total failure.

Manual Integration of Lost Documents

Although a loss of transaction data is highly improbable, the fiscal auditor may ask for the procedure on how to proceed after system failure and replacement. After restoring the latest backup, a function to manually integrate documents which have been lost may be required to provide a gapless SAF-T export.

For integration of "Lost Documents", please register the original transaction including the additional fields Fiscal Number FN and original Date D:

<Tra>
  <ESR TL="001" TT="1" T="0.98" Opr="102" FN="FT 001_1.22/4711" D="2022-01-02T14:12:00">
    <PosA>
...

Printout is optional. Manual integration will automatically start a new numbering series (see Numbering Series).

Documents integrated manually are tagged with <SourceBilling>M</SourceBilling> ("manual") in SAF-T, and other reference fields are set according to the regulations.

Numbering Series

The numbering of documents has to be unique within the whole company. For this, the ID of the POS system and the document date is used. Transaction Location TL="001" (business premise), Transaction Terminal TT="1" (POS number on premise) with transaction Date D="2022-..." will result in the series 001_1.22. The whole Fiscal Number then shows as: FS 001_1.22/1234

An automatic enumerator reset is performed with each new year (first transaction on January, 1st 2023), giving e.g. FS 001_1.23/1. If the system is restored from backup, you may have to enter missing documents. Afterwards, click [start new series] on the "Controle" page.

Client Certificate for the Software Producer

Steps:

1. Please open http://localhost:5618 page "Controle" and click on "Registration"
2. Check if NIF (=TaxId) is yours (the software producer)
3. In "Request" enter the certificate subject fields, e.g. "FR, none, Paris, ...". CN will show your NIF
4. Create [new .csr]
5. The content of the .csr file (PEM base64 formatted) has to be copied into the request field in the AT portal
6. The request will be processed by AT and you will get the public key part via email
7. Then paste the PEM formatted certificate in the "Registration" page and [create .pfx]

The .pfx file then will be used as client certificate in the WSDL communication. Another certificate for communication with the test backend is provided by EFR.

ATCUD

Each document (e.g. Fatura Simplificado) has to show a number prefix, which is issued by the Portuguese fiscal authority AT. EFR performs the communication automatically on your behalf (open or close series), using a web service interface. You will then have to configure a login (sub-user/password) in the fiscal portal.

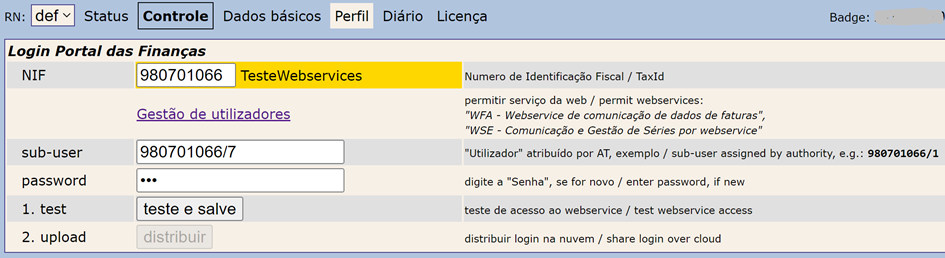

Proceed to enter the data on "Controle", [configurar...] login:

With [teste e salve] a communication test is performed and upon success, an encrypted file with the login credentials is created. With [distribuir] you can immediately provide the credentials to all systems belonging to your company. This function is disabled in test mode (before certification).

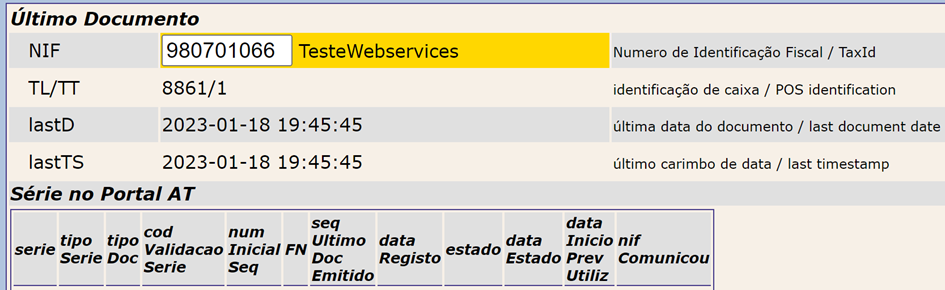

Open series at AT can always be shown on "Controle", [listar...]:

Network communication with the AT portal is done with following endpoints:

• https://servicos.portaldasfinancas.gov.pt:422/SeriesWSService (Production)
• https://servicos.portaldasfinancas.gov.pt:722/SeriesWSService (Test)

Please assure that these URLs and ports are appropriately configured on your local firewall. During certification with the fiscal authority, please set "Perfil" (Attributes) Fiscal_test:

This will force communication with the test endpoint.

Automatic New Series

Opening an new series is done automatically by EFR as much as possible on following events:

• First transaction on a new (empty) EFR
• First transaction in a new year (e.g. on January 1st)
• First transaction after manual integration of lost documents (because after hardware failure, a new series is required)
• First normal transaction after manual integration of lost documents

Closing Series

Upon creating new series, the old ones are always closed automatically. If a POS system is taken out of operation, please use the function "Controle", "Serie e ATCUD" [finalizer ativas / close active] instead.

SAF-T Export

The Portuguese Fiscal Authority "AT" requires at least a monthly upload of sales data of all POS systems. This is normally performed for the whole company from the efsta Cloud Portal.

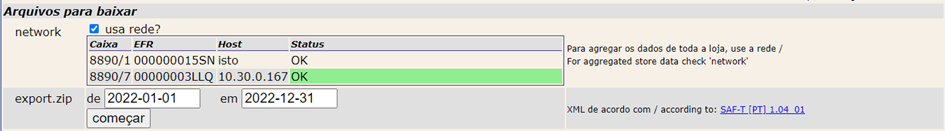

During certification and for on-premise audit by the Fiscal Authority, a local export is required. This can be found at http://localhost:5618 under "Controle":

An export of all POS systems from the business premise is required, so all other EFR systems within the local network (LAN) are shown (for this the UDP broadcasting is used, so if your systems are not shown properly please check your network switch / router / firewall configuration).

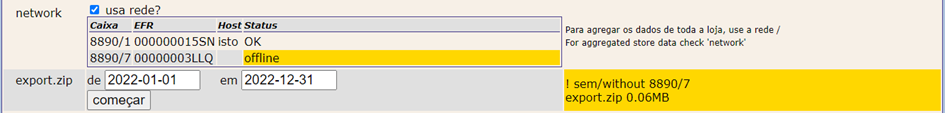

By default, the checkbox "LAN" is checked, so a SAF-T export will include all other POS systems (with matching field Loc.TL, see "Dados básicos"). If LAN=on and a known POS cannot be reached, a warning is shown on the GUI, but the export will still be performed:

REST Implementation

For export use e.g. GET /control/export?lan=on&from=2022-01-01&till=2022-12-31

Before starting the export, please check the current network state with GET /control/lan (for XML response instead of JSON set request header Accept=application/xml). POS systems not accessible are listed with "state":"offline". In case of systems being offline, request a user confirmation that the resulting export will not be completed.

As network reachability can change, the /control/lan result is cached for 60 sec and will then be used in a subsequent export while offline systems will be skipped.

Optional query parameters for /control/export:

Element	Description
Headercomment	Will be exported in <header><HeaderComment>...
Target	Specify a directory path, where the export .xml shall be stored else, a .zip containing the export file will be sent in response body

Software Certification

Finally, the POS software has to undergo a certification with the Portuguese fiscal authority AT.

Prerequisites

For details, please contact sales@efsta.eu. efsta will support you through the preparation phase.

Initiation at the Fiscal Portal

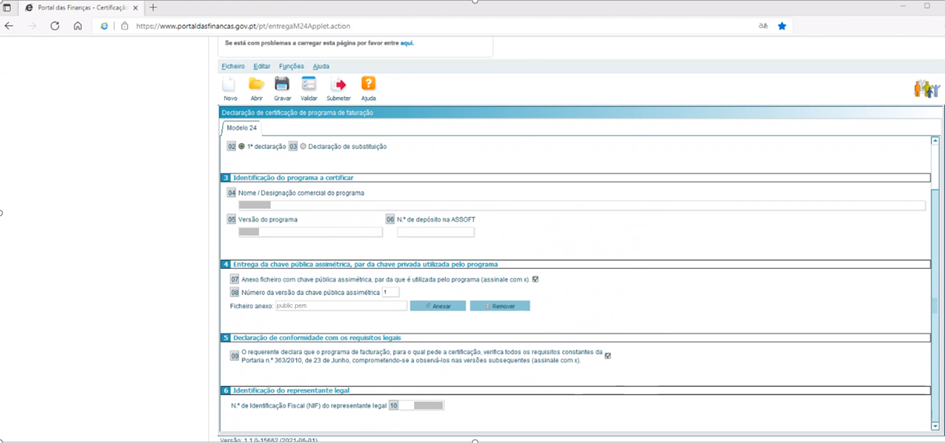

The fiscal public key file public.pem has to be uploaded (download from page "Controle"):

note

After registration you will receive an email from your fiscal auditor.

Data Transfer to the Tax Authority

Part of the Portuguese ruleset is to periodically (per day or per month) deliver receipt data (invoice) in SAF-T [PT] 1.04_01 format. An appropriate export function is included in EFR and can be found in the user interface http://localhost:5618, page "Controle". By now this is a manual task, further process automation is planned in accordance with the Tax Authority.

Appendix

Change Log

Revision	Date	Modifications
1.13	2024-03-28	[PT] PDF converted to .md
1.12	2024-02-02	Latest [PT] PDF version
